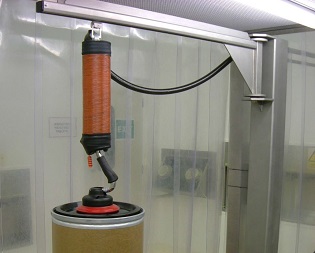

Clean room column jib crane is a kind of lifting equipment suitable for clean room environment. It is composed of column, jib, hoist, etc., and can rotate and lift materials within a certain range. It is suitable for various clean workshop environments such as biotechnology, medical equipment, pharmaceutical production, food production, and semiconductor manufacturing.
Product specifications and parameters of clean room column jib crane:
● Carrying capacity: between 100kg and 2 tons, can be customized.
● Rotation angle: 0 degrees to 360 degrees, can be customized.
● Rotation mode: manual or electric rotation, electric rotation can improve operating efficiency.
● Boom length: generally 1-3 meters, can be customized.
● Material: stainless steel or aluminum alloy, with anti-corrosion, anti-oxidation, explosion-proof and other characteristics.
● Drive mode: electric or pneumatic drive, can be customized.
● Control mode: manual or automatic control, automatic control can improve operating efficiency.
Features of clean room column jib crane:
● Compact structure, small space occupation, light weight, large span and large lifting capacity.
● The operation is flexible, and the swing arm can rotate within a certain range, which is convenient for material handling and positioning.
● Dust-proof and oil-proof, not easy to produce particles, suitable for clean room environment requirements.
● The hoist is equipped with a clean chain hoist, which has the characteristics of high efficiency, energy saving, trouble-saving, easy operation and maintenance, etc.
Advantages of column jib crane in clean room:
● Cost saving, Compared with bridge cranes or gantry cranes, jib cranes have low cost, low maintenance costs and low operating costs.
● To improve efficiency, the column jib crane can quickly and accurately lift and position materials, improving the efficiency and quality of the production line.
● To ensure the cleanliness, the clean room column jib crane adopts a dust-proof and oil-proof design, which will not pollute the clean room environment and ensure the cleanliness and quality of the product.
The column jib crane can also be customized according to different needs, for example, accessories such as hooks and pulleys can be added to adapt to different operating scenarios. At the same time, the column jib crane can also be integrated with other equipment in the clean room, such as clean room workbench, clean room conveying system, etc. This can make the operation in the clean room more efficient and convenient.
