ISO Standard Cleanroom Lifting - What & How
KUNFENG Cranes offers a complete line of cleanroom cranes designed to meet the needs of the pharmaceutical, food and semiconductor industries.
Do you know what's the standard of clean room?
Cleanrooms are classified according to the number and size of particles permitted per volume of air. ISO 14644-1 and ISO 14698 are non-governmental standards developed by the International Organization for Standardization (ISO). The former applies to clean rooms in general (see table below).
Class | Number of Particles per Cubic Meter by Micrometer Size | FED STD 209E equivalent | |||||
0.1 microns | 0.2 microns | 0.3 microns | 0.5 microns | 1 micron | 5 microns | ||
ISO 1 | 10 | 2 | |||||
ISO 2 | 100 | 24 | 10 | 4 | |||
ISO 3 | 1,000 | 237 | 102 | 35 | 8 | Class 1 | |
ISO 4 | 10,000 | 2,370 | 1,020 | 352 | 83 | Class 10 | |
ISO 5 | 100,000 | 23,700 | 10,200 | 3,520 | 832 | 29 | Class 100 |
ISO 6 | 1,000,000 | 237,000 | 102,000 | 35,200 | 8,320 | 293 | Class 1000 |
ISO 7 | 352,000 | 83,200 | 2,930 | Class 10,000 | |||
ISO 8 | 3,520,000 | 832,000 | 29,300 | Class 100,000 | |||
ISO 9 | 35,200,000 | 8,320,000 | 293,000 | Room Air | |||
Meanwhile, different countries have their own cleanroom standard, as FS209E of the USA and GMP of China.
How can we made clean lifting possible?

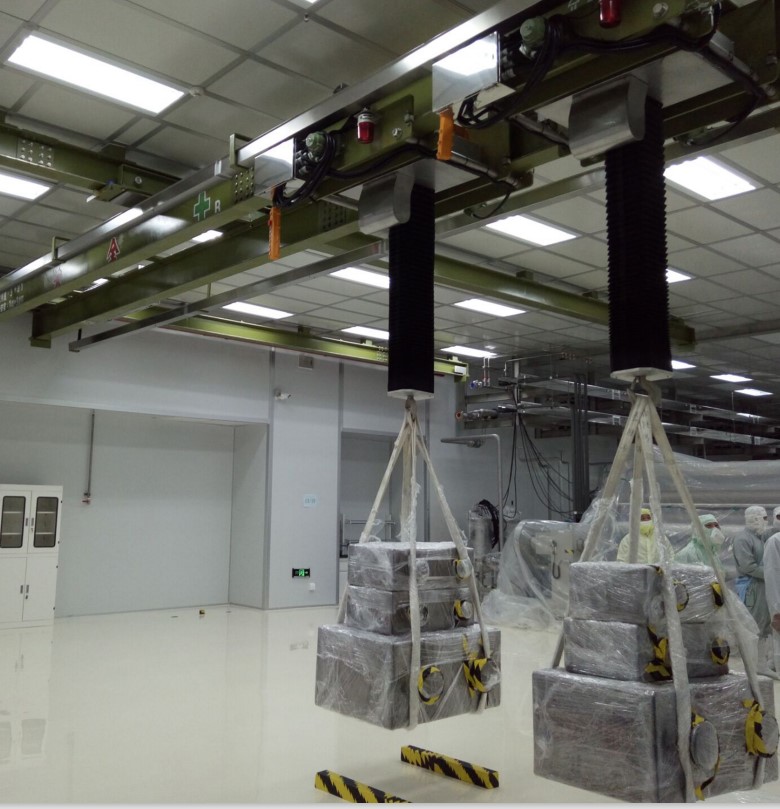

As a leading enterprise in the field of Chinese engineering machinery lifting. We provide many kinds of cranes used in cleanroom at your request.
With options including stainless steel chain and hooks, food-grade chain lubricants, and aluminum or stainless steel frame coated with special metarial, our cranes are antistatic and no need to worry about stray material and debris contaminating your process.
In addition, we have upgraded a belt crane to help your work, with durable but light fiber belts ensure you a clean and safe lifting operation. Contact us to learn more today!
