Wheel block drive system comes in a range of wheel diameters including 112 mm, 125 mm, 160 mm, 200 mm, 250 mm, 315 mm, 400 mm, and 500 mm. It is designed based on European advanced technology, which significantly improves work performance and prolongs work life.
This technology has a wide range of applications for different types of traveling mechanisms, including crane traveling mechanisms (end carriages), electric trolleys, movable workshops, and movable workstations. It can be paired with various geared motors, such as SEW, Abm, Nord, Kone, Demag, and more.
Features of Wheel Block Drive System
• Eight sizes for wheel loads from 5,00 kg to 40,000 kg. And the wheel diameter range from 112 to 500 mm.
• Multiple configurations for connection to on-site structures, including the top/end/side connection, bolt connections, weld connection. And the motor connection ways can be adjusted to the onsite equipment.
• Low-maintenance direct drive with two travel speeds
• Powerful, durable standard components
• Maintenance-free rolling bearing
• Optionally with frequency-controlled motors
• Optional version with angular drive
• Optionally in explosion-proof version according to ATEX
Capacity (ton) | Weight (kg) | Splined hub profile DIN 5480 | Bear type | |
DRSA 250 | 16 | 41 | W65x2x30°x31x7H | 32018X |
DRSA 315 | 22 | 130 | W75x3x30°x24x7H | 33022 |
DRSA 400 | 30 | 220 | W90x3x30°x28x7H | 33024 |
DRSA 500 | 40 | 380 | W110x2x30°x35x7H | 32030X |
Characteristics:

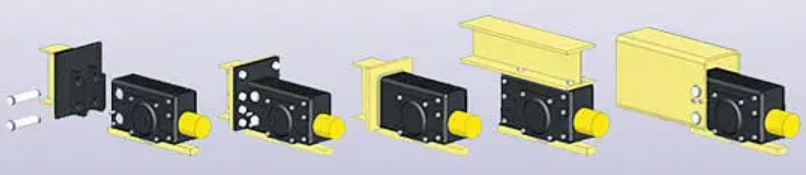

• 4 variants for connection to customer's superstructure (Top, pin, end and side connection)
• Widely used for wheel loads from 16 to 40 ton
• Hardened running surfaces with coating or with polyurethane binding.
• Compact design, light weight but have a long service life
• Efficient work with low noise
KUNFENG CRANES DRSA wheel block drive system has a wide application, including but not limited to traveling in automated warehouse, moving cement bricks in factory, crane and hoist traveling, etc. Email to sale@kfqizhongji.com, get a tailored solution today.
