Manual Type Load Turning Device-KF-RVM

| Manual Type Load Turning Device-KF-RVM

KF-RVM manual type load turning device can Condole belt spacing can be adjusted manually,weight: 10000 to 50000 kg
2022-11-21 10:09
Hot words:

kf-rvm turning
Product model: KF - RVM manual type

Condole belt spacing can be adjusted manually, weight: 10000 to 50000 kg
china load turning

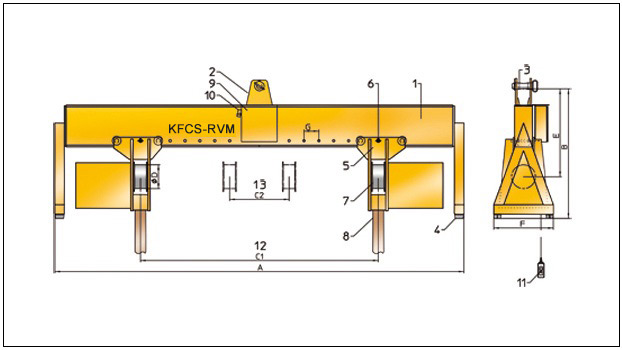

The component of product:
1. The crane beam
2. The suspension
3. Hanging bolt
4. Rubber shoes
5. Drive
6. Locking bolt
The driving wheels of the 7.
8. The chain or strap
9. Control box
10. CEE 5 hole socket
11. A flashlight door and the line of control
12. The biggest driving wheel spacing
13. The minimum distance between driving wheel
Scope of supply:
Basic configuration are applied to crane hook hanging eyes, belt line, appliance with switch (left/right and stop), 400 v / 50 hz 3 phase electric, 48 v control voltage, socket with CEE 5 hole.

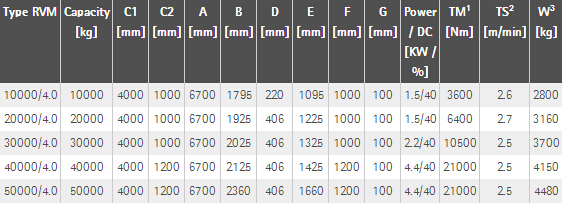

Selection table:
TM - turning torque, TS - turning speed, W - gravity (do not contain condole belt/chain)
chain turning
