The features of full gantry type load turning device

| The features of full gantry type load turning device

Description:
Full gantry type load turning device solves the requirements of sand box turnover,The features of full gantry type load turning device are as follows...
Category:
Created:
2022-06-24 16:57

Full gantry type load turning device solves the requirements of sand box turnover, up and down lifting, left and right movement and so on in the production process of customers.

The features of full gantry type load turning device are as follows:

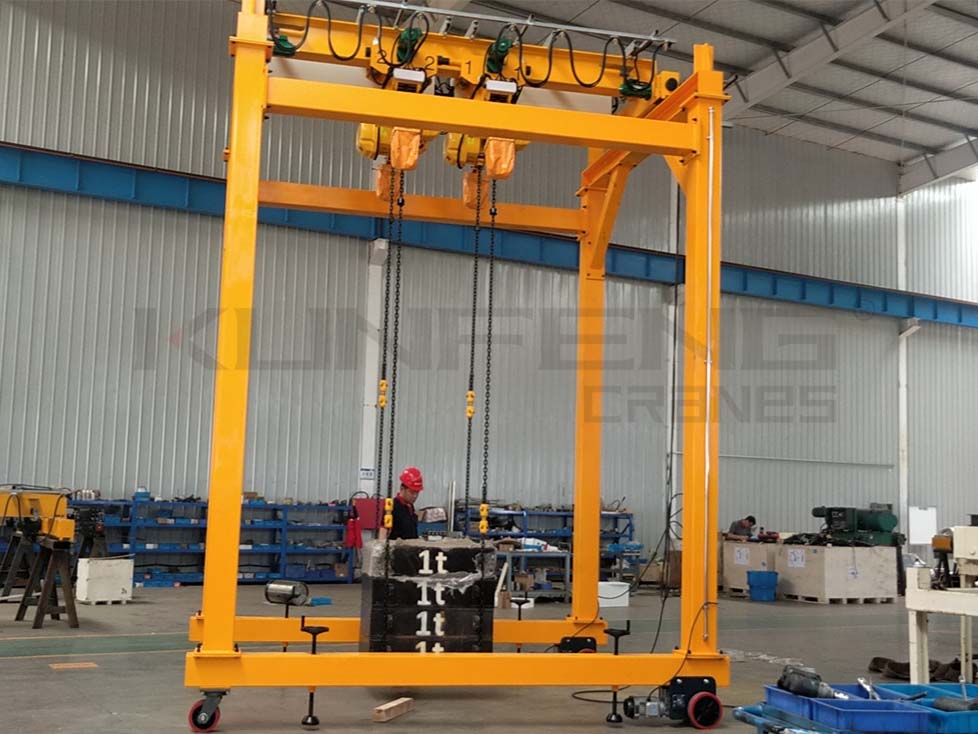

Full gantry type load turning device
Turnover weight 4000kg
Track width 2.7m
Lifting height 4.2m (height of upper limit of hoist)
Running length Trackless electric operation
Lifting speed 6.6m/min
crab travelling speed 0-16m/min
Crane running speed 0-16m/min
Power Supply Three phase AC 380V / 50Hz / 48V (the power line is 20m and put into the storage box)
maximum power 14.4kw
Operation mode Wireless remote control
colour customized
