Structure and use of column jib crane

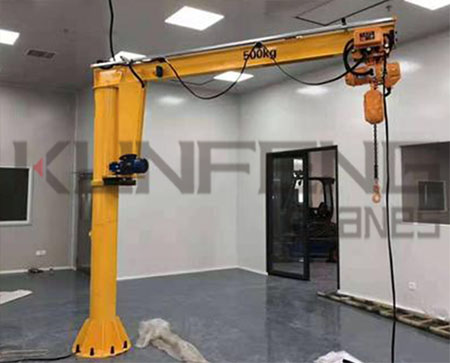

The Jib crane consists of a column, a swing arm, a cantilever drive device and an electric hoist. The bottom base of the column is fixed on the concrete foundation by anchor bolts, the motor drives the reducer drive device to make the cantilever rotate, and the electric hoist performs reciprocating operation on the cantilever I-beam. Cantilever cranes can help you shorten production preparation and non-productive work time, and reduce unnecessary waiting. Hyundai's cantilever cranes have many specifications and varieties. No matter what your requirements for lifting weight, suspension angle, arm length and function, all specifications have a common advantage: light weight, long cantilever, and heavy lifting capacity. , Simple installation, operation and maintenance. They are completely independent and are an ideal job crane, and are suitable for outdoor cargo yards and loading platforms. The fixed column occupies a small area.
A large lifting height can be obtained even when the lifting clearance is very small. The electric cantilever crane is a new generation of light lifting equipment made to adapt to modern production. It is matched with the highly reliable JPK electric chain hoist, which is especially suitable for short distances, frequent use, and intensive lifting operations. It has high efficiency, energy saving, It has the characteristics of saving trouble, small area, easy operation and maintenance. Mobile cantilever cranes are more flexible, maneuverable, and have wide adaptability. It is a necessary separate emergency hoisting equipment for efficient automatic production lines. With it, it can ensure that the production line is unimpeded. The crank arm series cantilever crane has the characteristics of novel structure, free extension and bending, convenient operation, high efficiency and energy saving. During operation, the load is lifted by pressing the button, and the bending and suspending movement of the beam is used to avoid objects in the control working area, so that the working area is larger. Push and pull gently by hand to reach any position in the work area.
The working strength of the cantilever crane is a light crane. The cantilever of the crane is a hollow steel structure. It has a light weight, a large span, a large lifting weight, and economical resistance. The cantilever is light and fast under the load. The lifting cantilever and walking mechanism can be manually and electrically driven and moved. Safe and accurate positioning. Built-in walking mechanism, using guide rail pulley device, low friction, light and fast walking. Suspension control 270° corner, can be used with chain hoist, linear balancer, VPL spreader, can choose galvanized or painted surface treatment. According to the different running tracks, the column-type cantilever crane can be divided into two types: internal-mounted rail cantilever crane and external-mounted rail cantilever crane. It is used in conjunction with the PK-type electric chain hoist, which can be quickly and swiftly lifted on the job. materials. The column cantilever crane can be installed in any position and is suitable for various occasions. It is an ideal choice for workshops where other conveying tools cannot be fixed in structure.
More information please contact us for free!
